Single-Stage vs Two-Stage Oil-Injected Screw Compressors Airends

Introduction to Oil-Injected Screw Airends

An oil-injected screw airend is the heart of an industrial screw air compressor. It consists of two intermeshing helical rotors (male and female) that compress air while injecting oil directly into the compression chamber.
The injected oil performs three critical functions:

• Sealing the compression chambers

• Cooling the compressed air

• Lubricating rotors and bearings

Because of their high efficiency, reliability, and continuous duty capability, oil-injected screw airends are widely used in manufacturing, power plants, oil & gas, petrochemical, automotive, and general industrial applications.

Oil-injected screw airends are mainly designed in two configurations:

• Single-Stage Oil-Injected Screw Airends

• Two-Stage Oil-Injected Screw Airends

Understanding the differences between these two technologies helps operators select the most efficient and cost-effective compressor for their application.

What Is a Single-Stage Oil-Injected Screw Airend?

A single-stage screw airend compresses air from atmospheric pressure to final discharge pressure in one compression step using a single rotor pair.

Key Characteristics of Single-Stage Airends

• One pair of rotors

• One compression chamber

• Simpler mechanical design

• Lower initial cost

• Compact size

How It Works

Ambient air enters the airend inlet, gets trapped between the rotors, and is gradually compressed as the rotor volume decreases. Oil is injected during compression to absorb heat and improve sealing efficiency. The compressed air-oil mixture exits the airend and goes to the oil separator.

Typical Applications

• Small to medium industrial plants

• Workshops and manufacturing lines

• Pressures up to 7–13 bar (100–190 psi)

• Intermittent or moderate load profiles

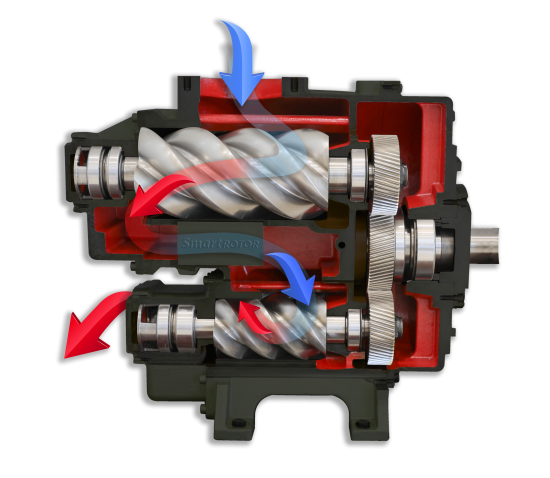

What Is a Two-Stage Oil-Injected Screw Airend?

A two-stage screw airend divides compression into two separate stages, each with its own rotor pair. The air is compressed in the first stage, cooled (inter-stage cooling), and then further compressed in the second stage to reach final pressure.

Key Characteristics of Two-Stage Airends

• Two rotor pairs (low-pressure and high-pressure stages)

• Lower compression ratio per stage

• Reduced discharge temperature

• Higher energy efficiency

• Designed for heavy-duty operation

How It Works

1. Air is compressed in the first (low-pressure) stage

2. Air is partially cooled using oil injection or an intercooler

3. Air enters the second (high-pressure) stage

4. Final compression occurs with improved thermodynamic efficiency

This staged compression significantly reduces energy losses and mechanical stress.

Single-Stage vs Two-Stage Oil-Injected Screw Airends (Comparison Table)

Energy Efficiency Differences

One of the biggest advantages of two-stage screw airends is energy efficiency.

Because each stage operates at a lower pressure ratio, the compression process is closer to isothermal compression, which is the most efficient thermodynamic condition. This results in:

• Lower specific power (kW/m³/min)

• Reduced power consumption at full load

• Less heat generation

• Longer airend life

In contrast, single-stage airends experience higher internal temperatures and pressure ratios, which slightly reduces efficiency—especially at higher discharge pressures.

Reliability and Service Life

• Single-stage airends have fewer components, making them simpler and easier to maintain.

• Two-stage airends distribute mechanical loads across two stages, reducing bearing stress and rotor wear.

For 24/7 continuous operation, two-stage airends generally offer longer service intervals and higher reliability.

Which One Should You Choose?

Choose a Single-Stage Oil-Injected Airend if:

• Your operating pressure is below 10–11 bar

• You want a lower upfront investment

• Your load profile is intermittent or variable

• Space and simplicity are priorities

Choose a Two-Stage Oil-Injected Airend if:

• You operate at high pressure continuously

• Energy efficiency is a top priority

• Electricity cost is significant

• The compressor runs long hours (3-shift operation)

Conclusion

Both single-stage and two-stage oil-injected screw airends play essential roles in industrial compressed air systems.
Single-stage airends offer simplicity and affordability, while two-stage airends deliver superior efficiency, lower energy consumption, and longer operational life.

Selecting the right airend design based on pressure, duty cycle, and energy cost can significantly reduce operating expenses and improve compressor reliability over the long term.
