Pressure Vessels:
Fidar Faraz Fartak designs and manufactures high-quality pressure vessels in accordance to ASME SECTION VIII DIV.1, Each vessel is engineered and fabricated using traceable, certified steel sheets to ensure maximum safety, durability, and performance.
All surfaces are sand-blasted prior to coating for optimal adhesion and corrosion protection. Internal surfaces are coated with epoxy paint and external surfaces with anti-corrosive oil-based coating, both applied with thickness tailored to the vessel’s operating environment.
Fidar employs the mix welding , back welding and Submerged Arc Welding (SAW) process for superior weld integrity. During production, VT (Visual Test) and PT (Pressure Test) inspections are conducted, followed by a complete hydrostatic test upon completion. UT (Ultrasonic Test) and RT (Radiographic Test) can also be performed upon customer request.

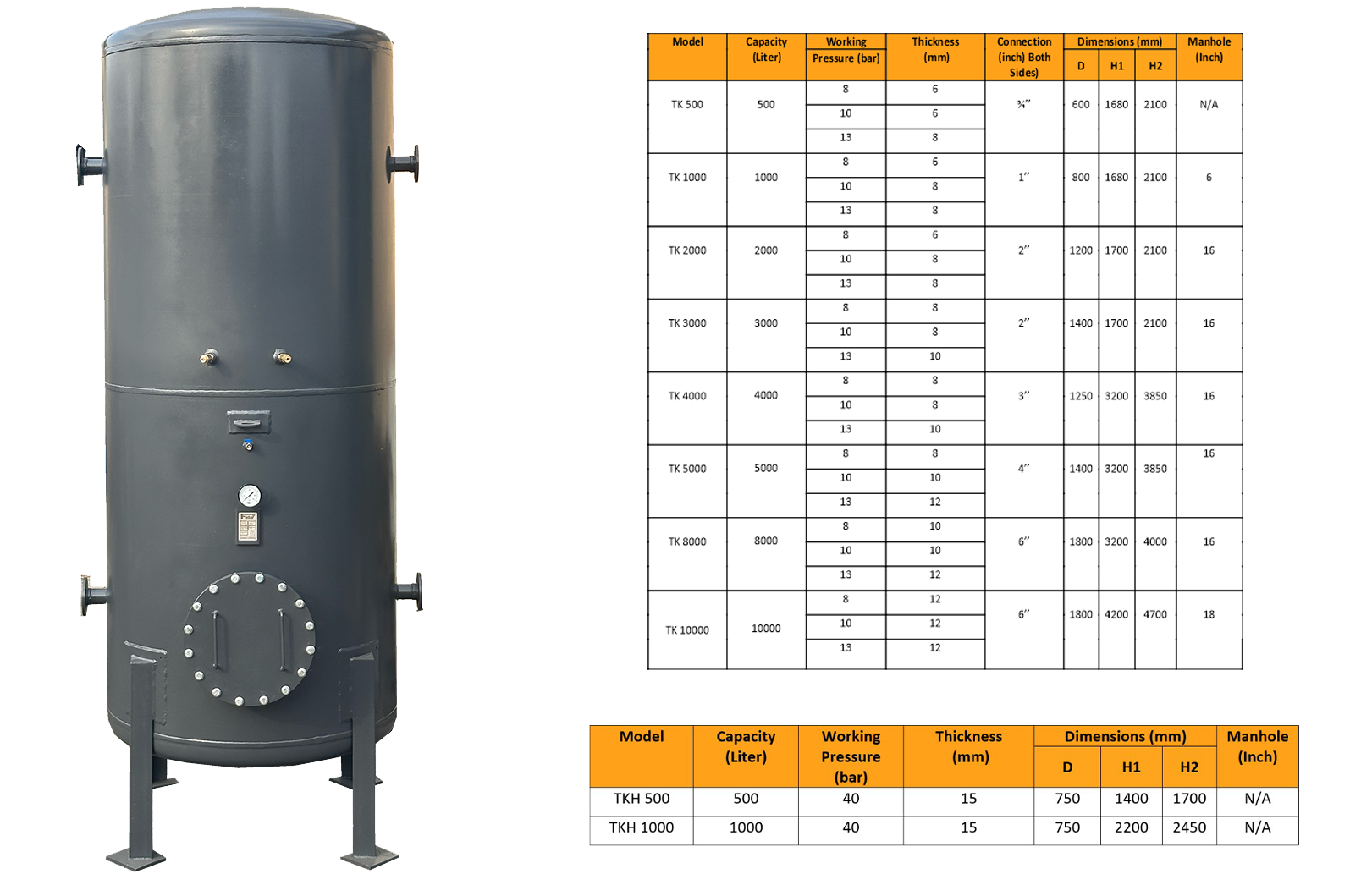

Our pressure vessels range from 500 litres (0.5 m3) to 20000 litres (20 m3) and working pressures of 8 , 10 , 13 and 40 bar detailed specs are shown below.
